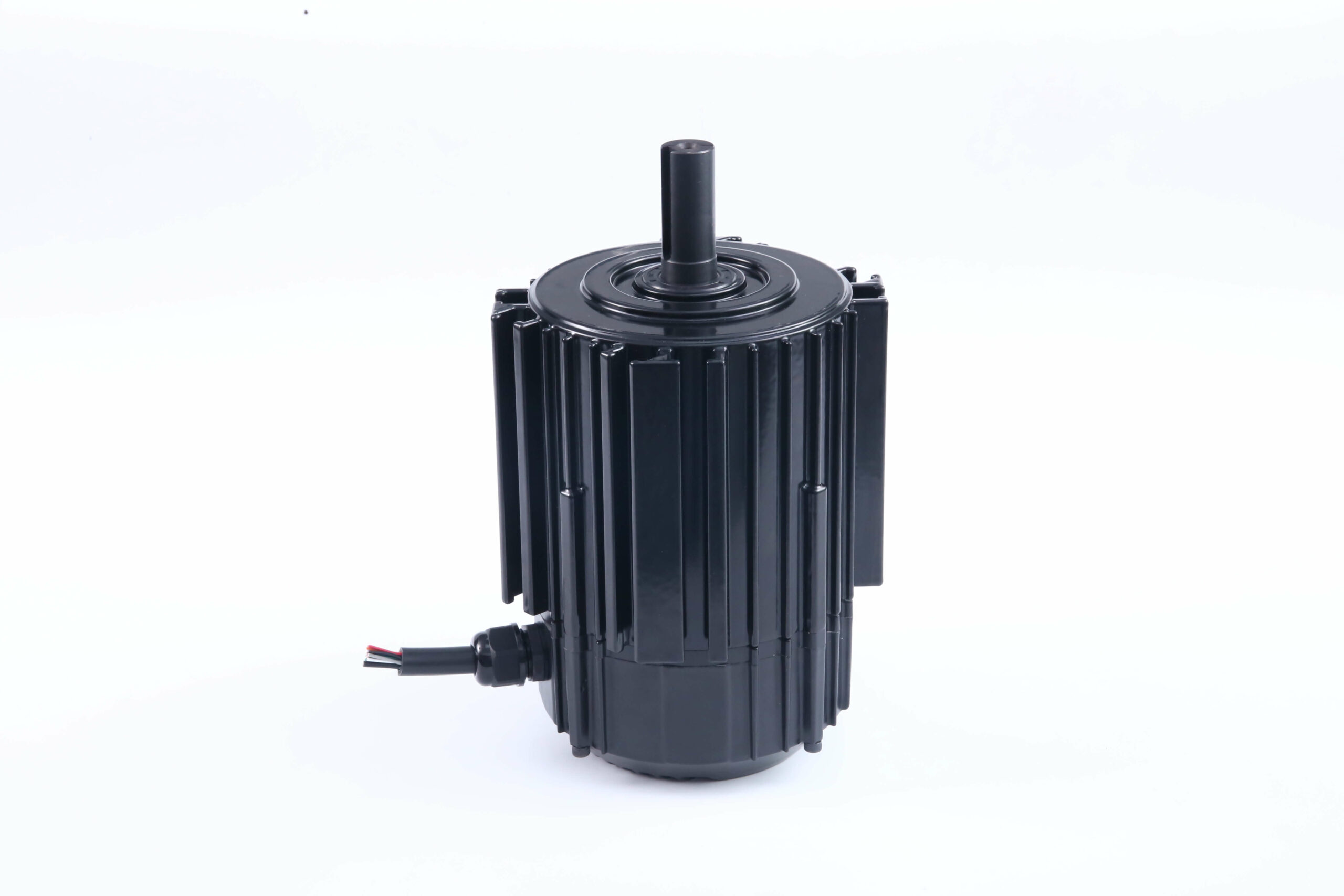

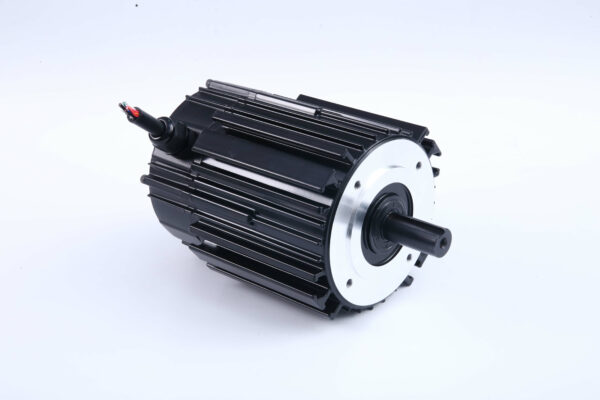

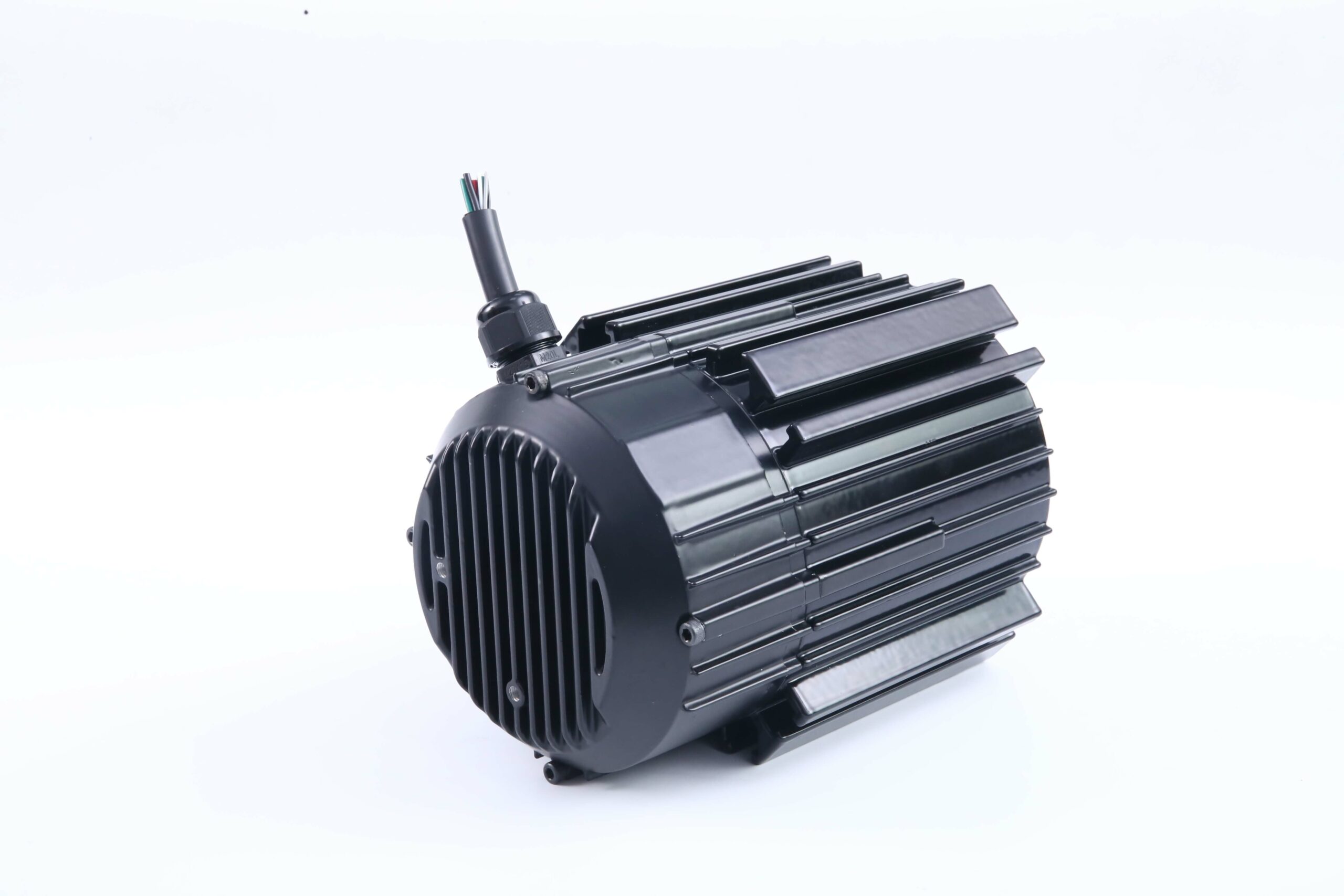

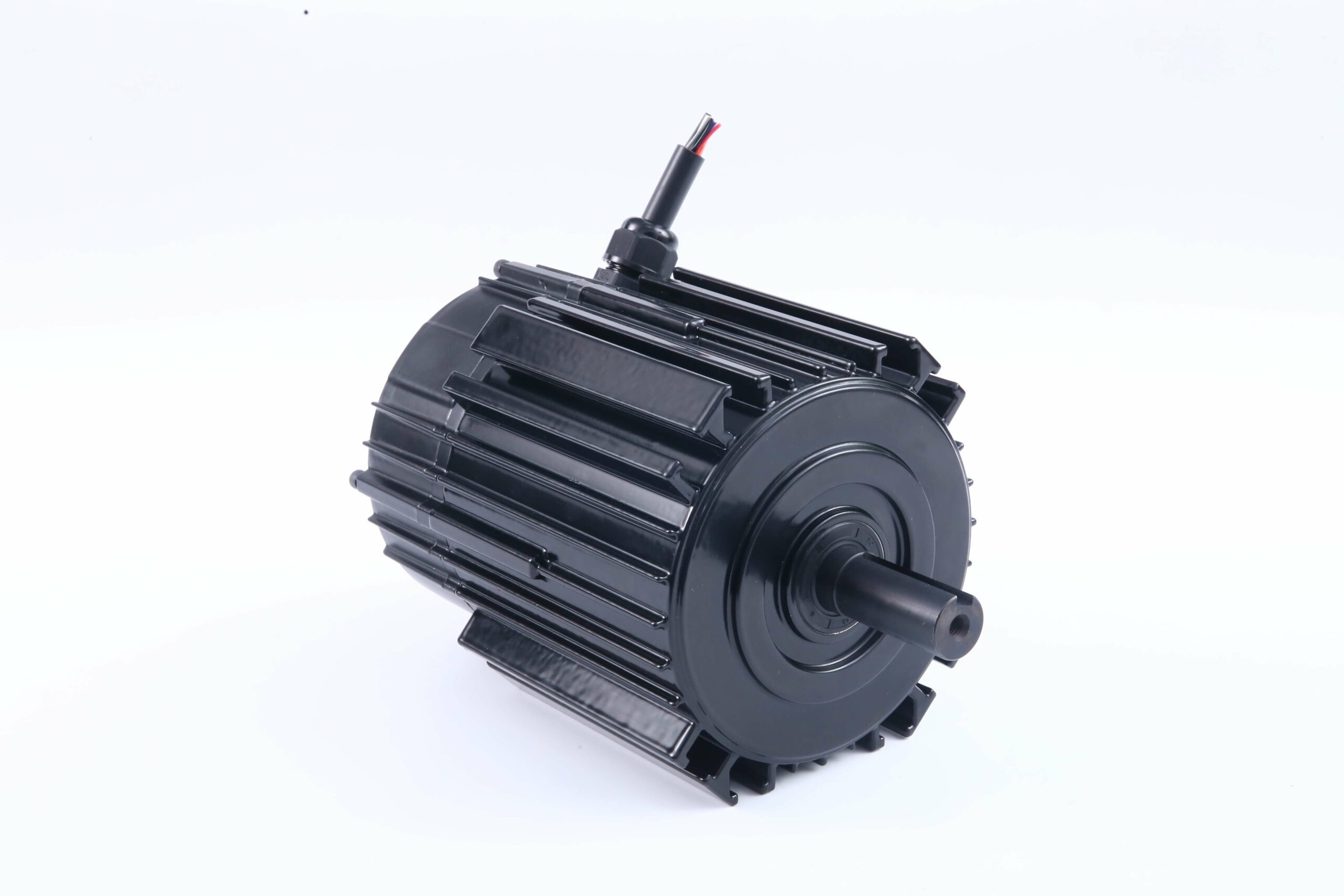

EC80 Platform Domestic

【Product Features】

* Hight Efficiency, meet IE5 Energy Efficiency Grade

* Competitive Cost, optimize product design by simulation analysis to maximize the contribution of raw material

* Compact Structure, select NdFeB magnet for High Power Density Motor

* Strong Protection Grade, reduce mechanical connection interfaces by the adoption of integrated solution

* Light Weight, comfortable for motor installation & after sales maintenance

* Intelligent Control, design with multiple electronic protection functions, provides foundation for the system of intelligent centralized control

【Product Applications】

Used for Axial Ventilator, other HVAC application, pumps, converyors compressors, etc.

Category: Uncategorized

Description

Product Details

Rated Power Supply	1~220VAC, 3~220VAC, 3~380VAC±10%	Ambient Temp.	-20~40℃
Power Frequency	50/60Hz	Protection Grade	IP55
Rated Power Range	0.375~2.2kW	Communication Function	RS485
Rated Speed	500~1,500rpm	Speed Regulation Mode	VSP Control (0~10V)/RS485 Command
Energy Efficiency	IE5	Power Factor	0.71~0.88

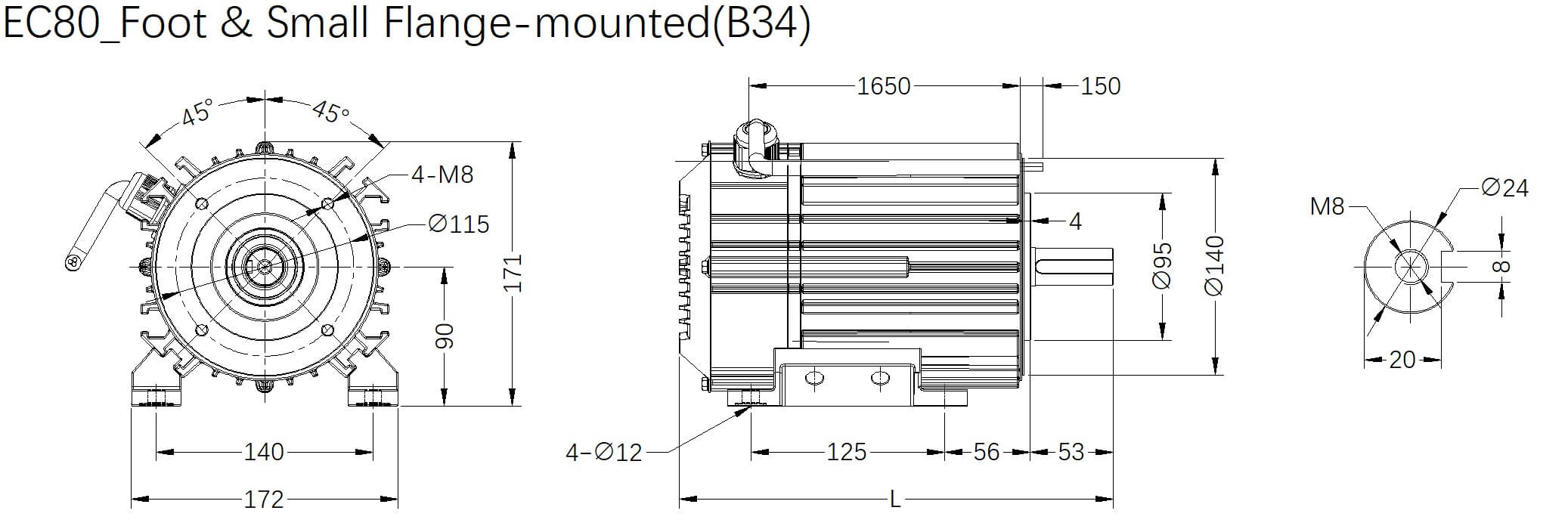

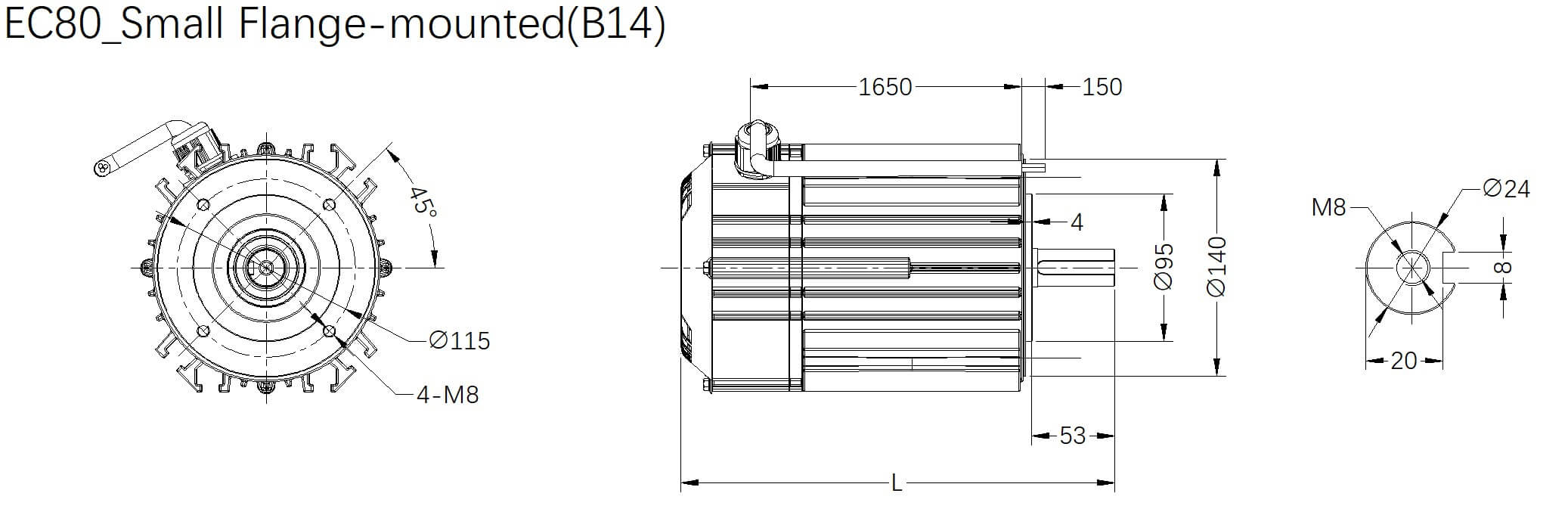

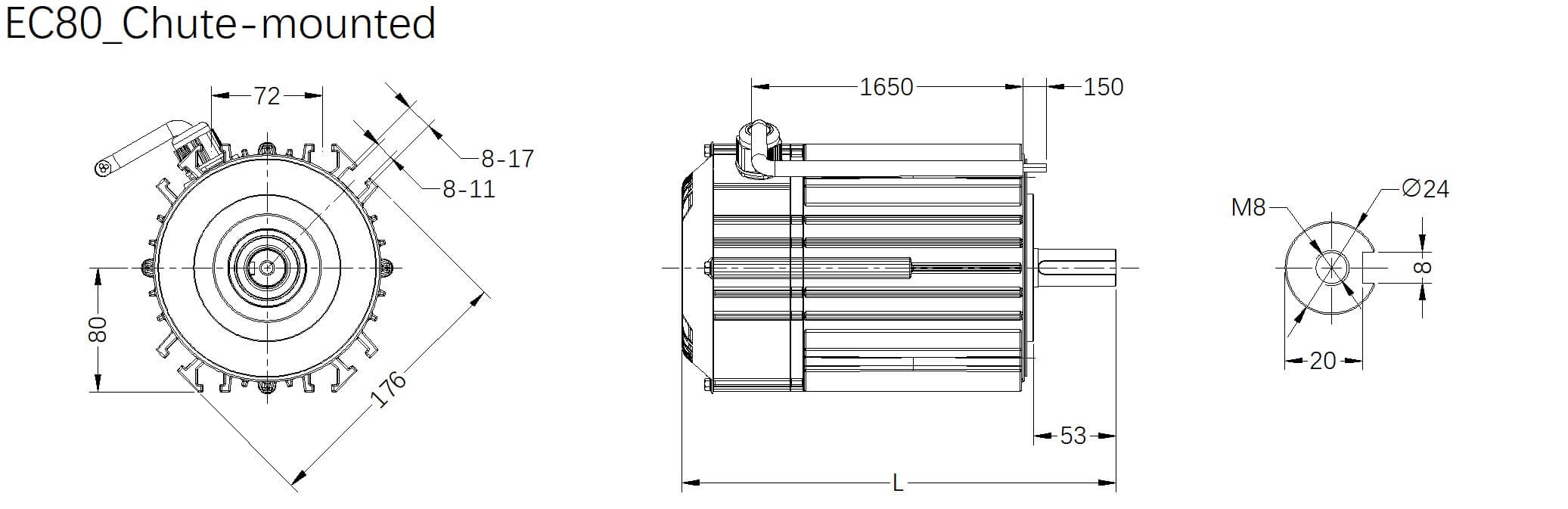

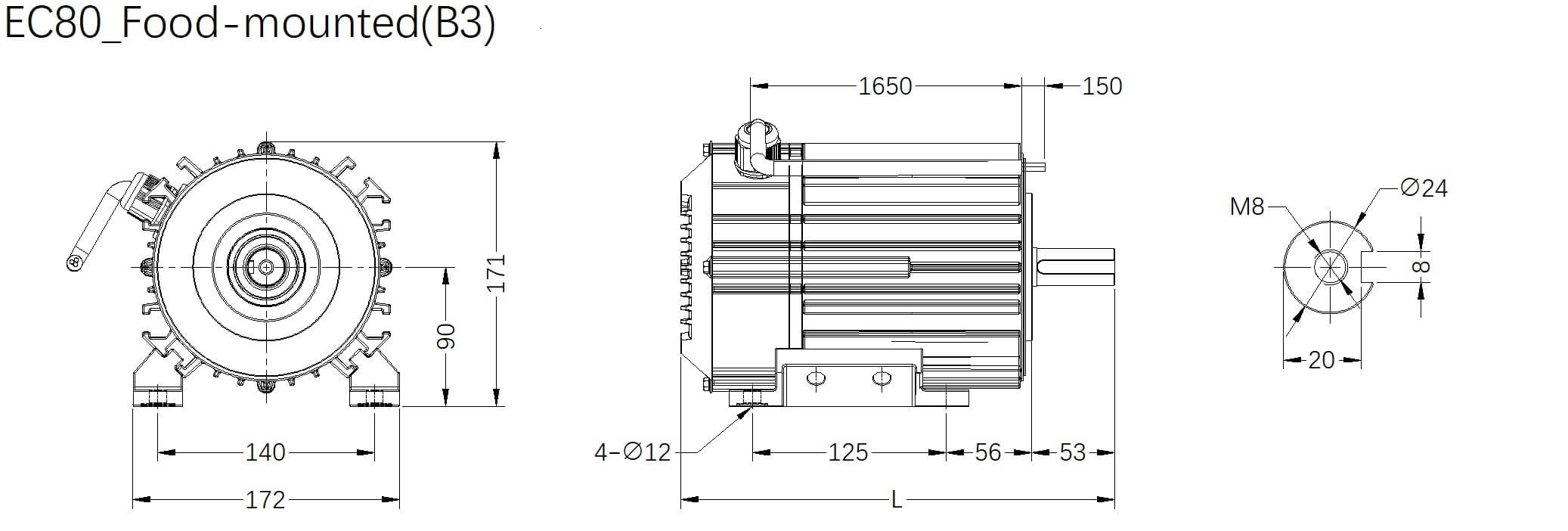

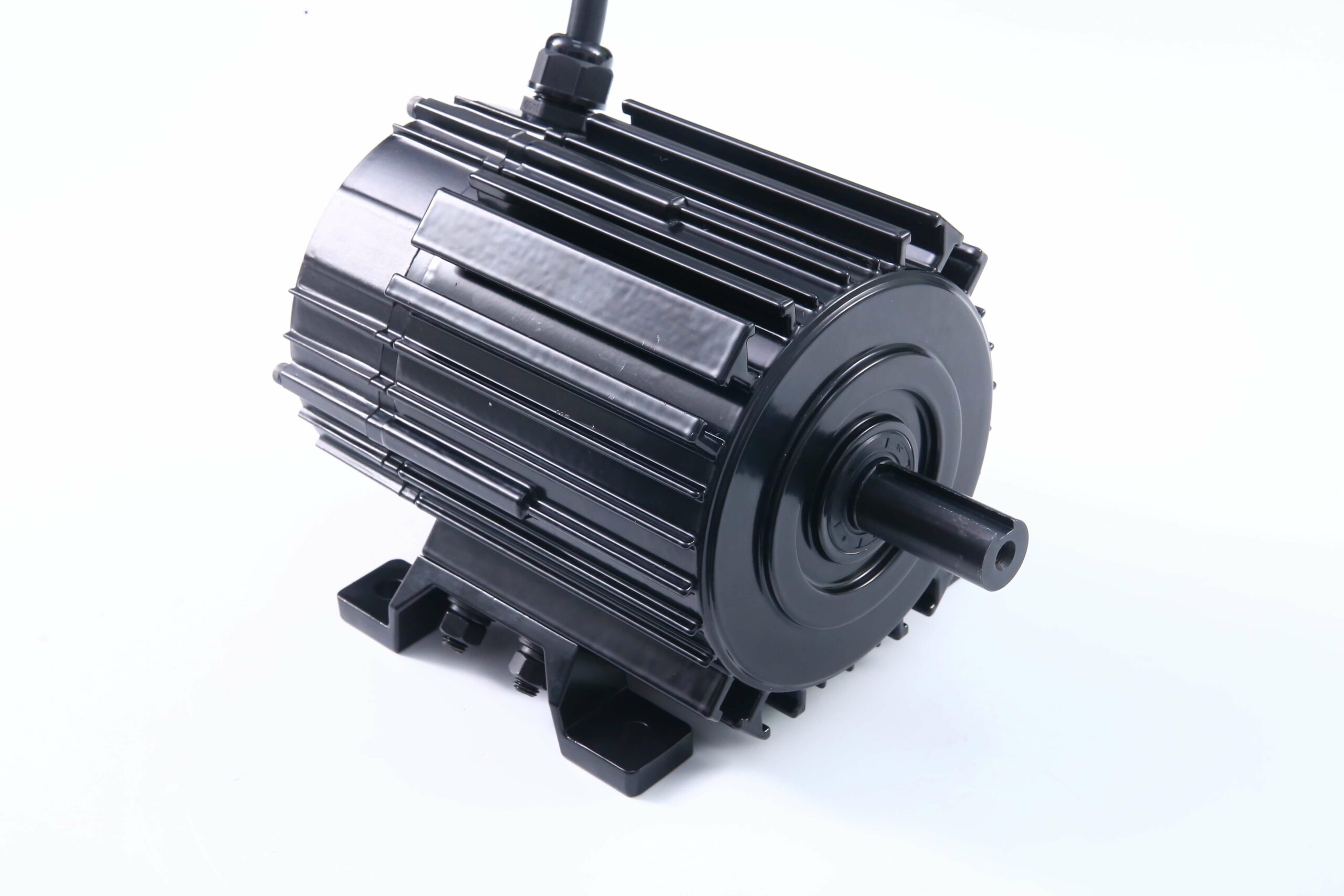

Insulation Class	F	Mounting Arrangement	Chute/B3/B14/B34

Motor Parameters

Electrical Performance Data (@ 3~380V 50Hz)

Platform Name	Rated Power (kW)	Full Load Torque (Nm)	Rated Speed (rpm)	Eff. (%)	Full Load Currrent In(A)	Weight (kg)
EC80	0.75	9.6	750	83.0	<1.9	7.9
EC80	1.1	14.0	750	85.1	<2.8	8.7
EC80	1.5	19.1	750	86.5	＜3.7	10.1
EC80	1.8	22.9	750	87.5	＜4.4	10.8
EC80	2.2	28.0	750	88.2	＜5.4	12.1
EC80	0.55	5.3	1,000	85.3	＜1.5	7.4
EC80	0.75	7.2	1,000	86.6	＜2.1	8.5
EC80	1.1	10.5	1,000	88.4	＜2.9	8.4
EC80	1.5	14.3	1,000	88.9	＜3.9	9.1
EC80	1.8	17.2	1,000	90.1	＜4.7	9.8
EC80	2.2	21.0	1,000	90.5	＜5.7	11.0
EC80	0.55	3.5	1,500	87.1	<1.4	6.6
EC80	0.75	4.8	1,500	88.9	<1.9	7.2
EC80	1.1	7.0	1,500	90.5	<2.5	7.6
EC80	1.5	9.6	1,500	90.8	<3.4	8.5
EC80	1.8	11.5	1,500	91.7	<4.1	9.2
EC80	2.2	14.0	1,500	92.4	<4.9	10.4

Rated Power (kW)	Total Length(L) (mm)
0.55~0.75	290.0
1.1~2.2	340.0
